High-Speed Optical Switches

PLZT Optical Switch Modules and Subsystems

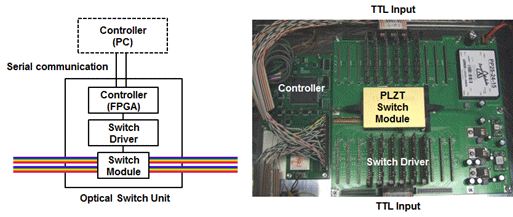

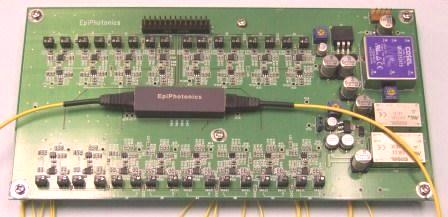

The PLZT optical switch modules and PLZT optical switch subsystems are powerful tool to switch optical signal at nano-second speed with low polarization dependence. The PLZT optical switch subsystem is equipped with a MZ type PLZT switch, single mode fiber ports, and a TTL controllable high-speed driver in a 1U 19 inch case. PC control system option will be available soon.

1xN Switch

Ports	Product #	Major specifications
1×1	EPS0101S	Switching time Insertion loss Extinction ratio PDL	< 10 ns 5.0 dB typ (Premium: 4.0 dB typ) 30 dB typ 1.0 dB typ
	EPS0101A2~4 (2~4 array)
1×2	EPS0102S	Switching time Insertion loss Crosstalk PDL	< 10 ns 5.0 dB typ (Premium: 4.0 dB typ) 30 dB typ 1.0 dB typ
	EPS0102A2 (2 array)
1×4	EPS0104S	Switching time Insertion loss Crosstalk PDL	< 10 ns 6.0 dB typ (Premium: 5.0 dB typ) 30 dB typ 1.0 dB typ
1×8	EPS0108S	Switching time Insertion loss Crosstalk PDL	< 10 ns 6.0 dB typ (Premium: 5.0 dB typ) 18 dB typ (Premium: 30 dB typ) 1.0 dB typ
1×16	EPS0116S	Switching time Insertion loss Crosstalk PDL	< 10 ns 7.5 dB typ (Premium: 6.0 dB typ) 18 dB typ 1.0 dB typ

NxN Switch

Ports	Product #	Major specifications
2×2	EPS0202S	Switching time Insertion loss Crosstalk PDL	< 10 ns 5.0 dB typ (Premium: 4.0 dB typ) 30 dB typ 1.0 dB typ
	EPS0202A2~4 (2~4 array)
4×4	EPS0404S	Switching time Insertion loss Crosstalk PDL	< 10 ns 7.5 dB typ (Premium: 6.0 dB typ) 30 dB typ 1.0 dB typ
8×8	EPS0408S	Under development

Advantages
Thanks to its efficient electro-optic properties and high refractive index. EpiPhotonics' unique PLZT waveguide technology enables a new generation of efficient optical switch subsystems with potent advantages such as;

• High-speed switching (< 5~10 ns)
• Low driving voltage (5V~10V)
• Low insertion loss
• Low polarization dependence
• Low power consumption
• Miniaturization

In addition, the PLZT products are very reliable and environmentally stable. The crystal structure of our PLZT materials and the fact that our optical switches have absolutely no moving parts guarantee high reliability and stability.

• High reliability (high-power laser admissive)
• Environmentally stable

Applications
EpiPhotonics' high-speed and low-power consumption products provide the key differentiators for many optical switching applications such as;

• Optical packet switching (OPS)
• Optical burst switching (OBS)
• On-demand ROADM
• On-demand crossconnects
• Switched optical access networks
• Optical interconnections (data center networks, server backplanes)
• High-speed protections
• Switched delay lines (phased array antennas, optical buffering)

Please contact us at sales@epiphotonics.com for more details including data sheets.
